Bullers Winery - Protecting Concrete From Acid Attack
How correct CNSH application technique delivers ongoing protection
The Challenge
Spray apply AQURON - Collodial Nano Silica with Hydrogel to protect a concrete slab against continued acid attack while having a minimal impact on wine production and storage and nil tolerance for wine contamination.
All withing a 48 hour time line for the actual wine production facility !
Step 1: Surface Preparation

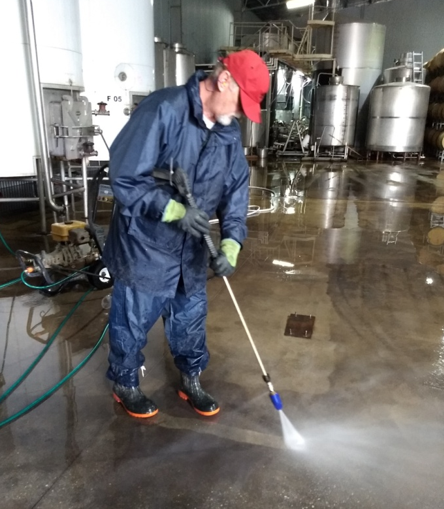

High-pressure turbo head water blasting:
Achieved bare, absorbent concrete
Eliminated any impermeable surface coating
✓ Damp surface (no standing water)
✓ All contaminants removed
✓ Substrate absorbency confirmed
Key lesson: Preparation quality determines success.
Step 2: Application Technique

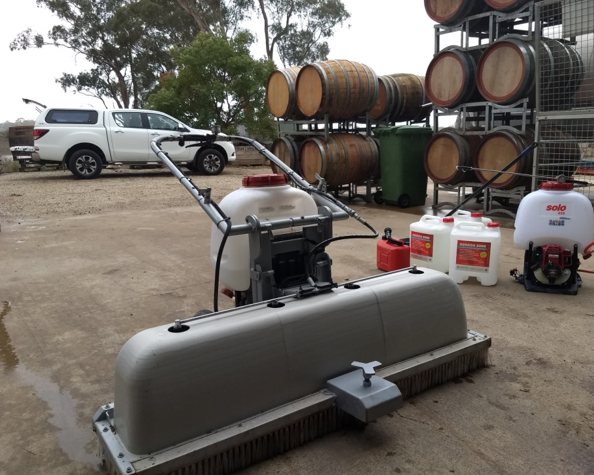

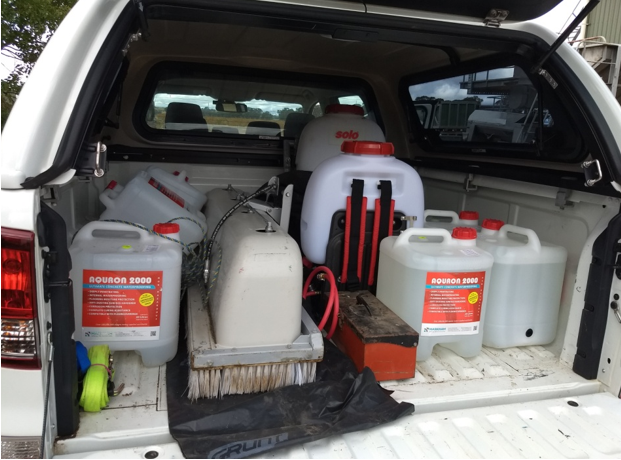

Equipment:

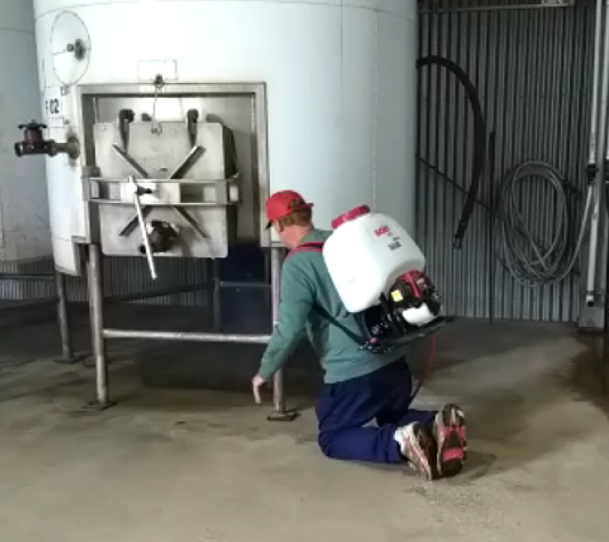

High-pressure atomizing spray (1500-2000 psi), boom spray and back pack
Critical application factor: atomization, not just pressure

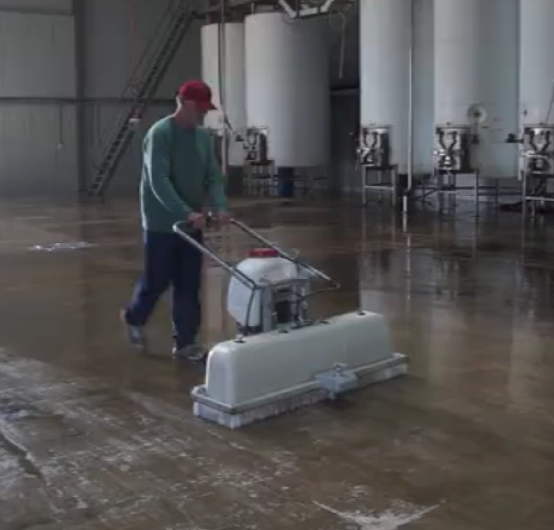

Systematic Process:
Apply multiple light passes (NOT one heavy coat)
Wait for surface sheen to disappear between passes (10-30 min)
Apply next pass while still damp
Minimum 2-3 passes to saturation point
Overlap between passes
Quality Control:
No ponding allowed
Complete coverage verified
1-hour trafficability achieved
Critical Application Rules
✓ Multiple light passes = 100-200mm penetration
✗ Single heavy application = poor penetration
✓ Damp surface = decades of performance at depth in the concrete matrix
✗ Dry surface = surface-only protection
Success Factors
Aggressive surface preparation - removed all contamination
Proper atomizing equipment - achieved deep penetration
Multiple light passes - systematic saturation technique
Damp surface application - optimal absorption / percolation
Proper technique = permanent results
